3.2 Inch IPS LCD Display Screen
Product Overview
High-performance 3.2-inch IPS LCD display designed for industrial control applications, featuring excellent viewing angles and high brightness for demanding environments.

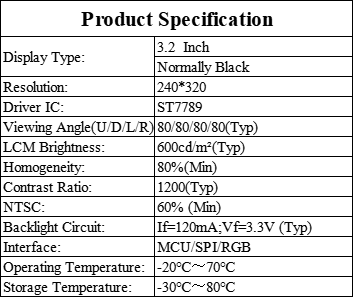

Technical Specifications
| Application |
Industrial Control |
| Number of pixels |
240*320 pixels |
| Active Area |
48.6*64.8mm |
| Module Outline |
53.6*73.0*2.88mm |
| Aspect Ratio |
4:3 |
| Display Mode |
Normally Black |
| Viewing Angle (CR>10) |
80/80/80/80 (Typ) |
| Contrast Ratio |
1200 (Typ) |
| NTSC |
60% (Typ) |
| LCM Brightness |
600cd/m² (Typ) |
| Interface |
MCU/SPI/RGB |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
Key Features
- High-quality IPS panel technology for superior viewing angles
- Excellent brightness (600cd/m²) for industrial environments
- Multiple interface options (MCU/SPI/RGB) for flexible integration
- Wide operating temperature range (-20~+70℃)
- Compact module size with 4:3 aspect ratio
3.2-Inch SPI/RGB/MCU TFT LCD Display, 240×320 Pixels, FPC, ST7789 Driver IC
3.2-Inch SPI/RGB/MCU TFT LCD Display, TFT LCD Display, 240×320 Pixels TFT LCD Display
Product Introduction
The 3.2-inch SPI/RGB/MCU TFT display is a full-color TFT LCD module featuring a 240 × 320 dot matrix and supports multiple interfaces, SPI, MCU and RGB. It delivers rich color reproduction and high resolution, offering users a clear and vivid visual experience. This display is suitable for a wide range of applications, including industrial equipment, handheld detection instruments, beauty devices, smart home systems, and consumer electronics.
The 3.2-inch SPI/MCU/RGB TFT model JT-3.2IPS integrates an ST7789 driver IC, supports multiple interfaces, and operates at a supply voltage (VDD) ranging from 2.8V to 3.3V. It can function in temperatures from -20℃ to +70℃ and be stored in temperatures from -30℃ to +80℃.
In addition to the standard product, Jingtai Liquid Crystal Display Technology offers differentiated customization solutions for this 3.2-inch TFT display, including but not limited to:
1. Backlight Customization: Adjust backlight type and brightness according to product requirements.
2. Interface Customization: Modify the structure and interface of the LCD cable to fit specific hardware platforms.
3. Touch Screen Integration: Capacitive touch panel is available to enhance user interaction.
3.2 inch IPS 240*320 TFT Touch Display Module Drawing
Electrical Maximum Ratings
|
Item
|
Symbol
|
Min
|
Max
|
Unit
|
Note
|
|
Supply voltage(VDDI)
|
V |
1.8 |
3.3 |
V |
-
|
|
Supply voltage(VDD)
|
V |
2.8 |
3.3 |
V |
-
|
|
Operating temperature
|
TOPR |
-20 |
70 |
℃ |
-
|
|
Storage temperature
|
TSTR |
-30 |
80 |
℃ |
-
|
